Graders

With sizes from 8′ through to 22′ and horsepower ranges from 100HP through to 600HP.

– General landscaping
– Irrigation
– Cleaning ditches

– Rebuilding terraces
– Clearing brush
– Filling in washouts

– Maintain orchards
– Cleaning feed lots
– Leveling paddocks

– Road grading & development

MK MARTIN XD GRADER BLADE

$8,999 + GST

XD Grader Blade

The Extreme Duty Grader Blade from MK Martin mounts to your tractors 3-point hitch. Powered by your tractors hydraulics the XD series blade has hydraulic cylinders to adjust the offset of the arm, the blade angle, and the tilt of the blade. An additional hydraulic cylinder on the optional wheel kit helps to control the depth. Made in North America.

The Extreme Duty grader blade is available in 8’, 9’ and 10’ models for tractors with a rated horsepower of 100 and 150 HP.

Available options include dual gauge wheel kit with hydraulic cylinder.

Model8XD-1009XD-1009XD-15010XD-150
Horse Power (Max.)100100150150
3PH MountCAT. 2 & 3
Mouldboard Thickness5/16”
Mouldboard Width96″108″108″120″
Mouldboard Height20″
Offset Adjustment27″ left or right (hydraulic)
Adjustment Angle32° left or right (hydraulic)
Adjustment Tilt13° blade adjustment (hydraulic)
King Pin3-1/2”3-1/2”4”4”
Cutting EdgeHigh Carbon 1/2″ x 6″ (reversible)
Weight (LBS.)1,5261,6191,7961,850

FIND OUT MORE / PURCHASE

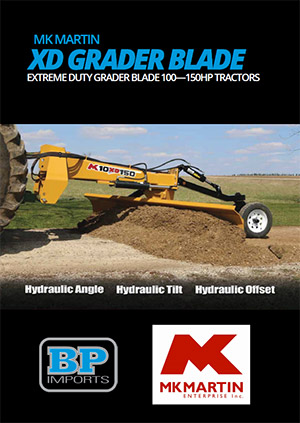

XD Grader Blade Brochure

DOWNLOAD THE XD GRADER BLADE BROCHURE – FILL IN YOUR DETAILS

LEON GZ325 GRADER – 325HP RATED

$24,999 + GST

GZ325 Grader Blade

Hydraulic Cushion Valve – The Hydraulic Cushion Valve comes standard on all LEON Pull Scrapers to protect the blade against grading obstacles.

Heavy Duty Large Floatation Tires – These tires have maximum load rating and provide superior smooth operation on the fields and on roads.

Standard Offset Control – Allows boom  to offset 10 feet left or 10 feet right allowing the blade to work in tough to reach locations.

Ripple Formed Moldboard – The Exclusive LEON Ripple Formed Moldboard always ‘rolls the load ahead’ allowing for a cleaner roll off of material.

Swing Away Box End Plates  – This option allows unit to be used as a box scraper. Swing away plates can be engaged to utilize the box scraper or can be placed back to allow material to slide off the end of the moldboard.

Replaceable Cutting Egde – All LEON Pull Scrapers come standard with a high carbon cutting edge  which is REPLACEABLE and REVERSIBLE.

Standard Weight Box – Positioned over the main axle to provide maximum stability and control on slopes and over bumpy terrain and incline. Optional 1000 lb. weights with transport hooks are available on all models

Standard Swivel Hitch Tongue – Provides the LEON Pull Scraper with superior maneuverability in those confined spaces and during sharp turns.

Baked-on Powder Paint Finish – All LEON Models offer tough durable outer paint coverage after pre paint metal shot-blast cleaning process.

Made in North America

FIND OUT MORE / PURCHASE

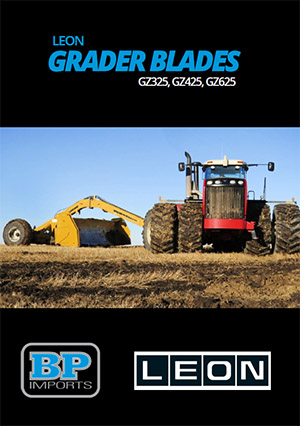

LEON Grader Blades Brochure

DOWNLOAD THE LEON GRADER BLADES BROCHURE – FILL IN YOUR DETAILS

LEON GZ425 GRADER – 425HP RATED

$33,999 + GST

GZ425 Grader Blade

Unique LEON Exclusive Arched Boom –  The Arched Boom of the LEON GZ400 Pull Scraper provides optimum user visibility and maximum maneuverability in digging, angling, tilting and offsetting the cutting blade.

Hydraulic Cushion Valve – The Hydraulic Cushion Valve comes standard on all LEON Pull Scrapers to protect the blade against grading obstacles.

Heavy Duty Large Floatation Tires – These tires have maximum load rating and provide superior smooth operation on the fields and on roads.

Standard Offset Control – Allows boom  to offset 10 feet left or 10 feet right allowing the blade to work in tough to reach locations.

Ripple Formed Moldboard – The Exclusive LEON Ripple Formed Moldboard always ‘rolls the load ahead’ allowing for a cleaner roll off of material.

Swing Away Box End Plates – This option allows unit to be used as a box scraper. Swing away plates can be engaged to utilize the box scraper or can be placed back to allow material to slide off the end of the moldboard.

Replaceable Cutting Egde – All LEON Pull Scrapers come standard with a high carbon cutting edge  which is REPLACEABLE and REVERSIBLE.

Standard Weight Box – Positioned over the main axle to provide maximum stability and control on slopes and over bumpy terrain and incline. Optional 1000 lb. weights with transport hooks are available on all models

Standard Swivel Hitch Tongue – Provides the LEON Pull Scraper with superior manoeuvrability in those confined spaces and during sharp turns.

Baked-on Powder Paint Finish – All LEON Models offer tough durable outer paint coverage after pre paint metal shot-blast cleaning process.

Made in North America

FIND OUT MORE / PURCHASE

LEON Grader Blades Brochure

DOWNLOAD THE LEON GRADER BLADES BROCHURE – FILL IN YOUR DETAILS

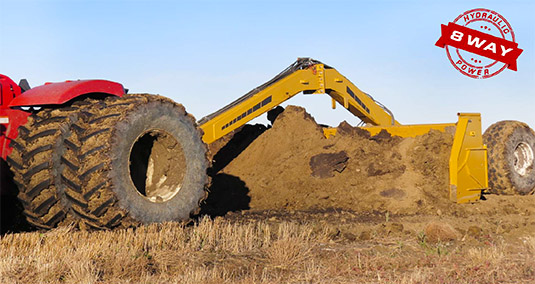

LEON GZ625 GRADER – 625HP RATED

$84,999 + GST

GZ625 Grader Blade

Unique LEON Exclusive Arched Boom –  The Arched Boom of the LEON GZ400 Pull Scraper provides optimum user visibility and maximum maneuverability in digging, angling, tilting and offsetting the cutting blade.

Hydraulic Cushion Valve – The Hydraulic Cushion Valve comes standard on all LEON Pull Scrapers to protect the blade against grading obstacles.

Heavy Duty Large Floatation Tires – These tires have maximum load rating and provide superior smooth operation on the fields and on roads.

Standard Offset Control – Allows boom  to offset 10 feet left or 10 feet right allowing the blade to work in tough to reach locations.

Ripple Formed Moldboard – The Exclusive LEON Ripple Formed Moldboard always ‘rolls the load ahead’ allowing for a cleaner roll off of material.

Swing Away Box End Plates  – This option allows unit to be used as a box scraper. Swing away plates can be engaged to utilize the box scraper or can be placed back to allow material to slide off the end of the moldboard.

Replaceable Cutting Egde – All LEON Pull Scrapers come standard with a high carbon cutting edge  which is REPLACEABLE and REVERSIBLE.

Standard Weight Box – Positioned over the main axle to provide maximum stability and control on slopes and over bumpy terrain and incline. Optional 1000 lb. weights with transport hooks are available on all models

Standard Swivel Hitch Tongue – Provides the LEON Pull Scraper with superior maneuverability in those confined spaces and during sharp turns.

Baked-on Powder Paint Finish – All LEON Models offer tough durable outer paint coverage after pre paint metal shot-blast cleaning process.

Made in North America

FIND OUT MORE / PURCHASE

LEON Grader Blades Brochure

DOWNLOAD THE LEON GRADER BLADES BROCHURE – FILL IN YOUR DETAILS

FOR MORE INFORMATION OR TO ORDER GET IN TOUCH WITH US VIA THE CONTACT US PAGE
